Product Description

The AWS Multiple Fire Feature Ignition System is designed for multiple fire features using the AWS Ignition System.

The system provides a 715K BTU capacity with a 30VDC valve system and is available for both Natural Gas and Liquid Propane applications. The included system components are designed for multiple-fire-feature installations.

Key Features

  • Multiple Fire Features: Designed for use with multiple fire features.
  • 715K BTU Capacity: Provides a 715K BTU capacity.
  • 30VDC Valve System: Uses a 30VDC valve system for multiple fire feature applications.
  • Natural Gas and Liquid Propane: Available in Natural Gas and Liquid Propane versions.
  • 30" Pilot Assembly: Includes a 30" pilot assembly.
  • Weatherproof Controls: Includes an On/Off weatherproof rocker switch.

Specifications

  • BTU Capacity: 715K BTU
  • Valve System: 30VDC
  • Natural Gas Configuration: 715K BTU NG
  • Liquid Propane Configuration: 715K BTU LP
  • Valve Inlet: 3/4 FIP
  • Valve Outlet: 3/4 FIP
  • Pilot Assembly: 30"

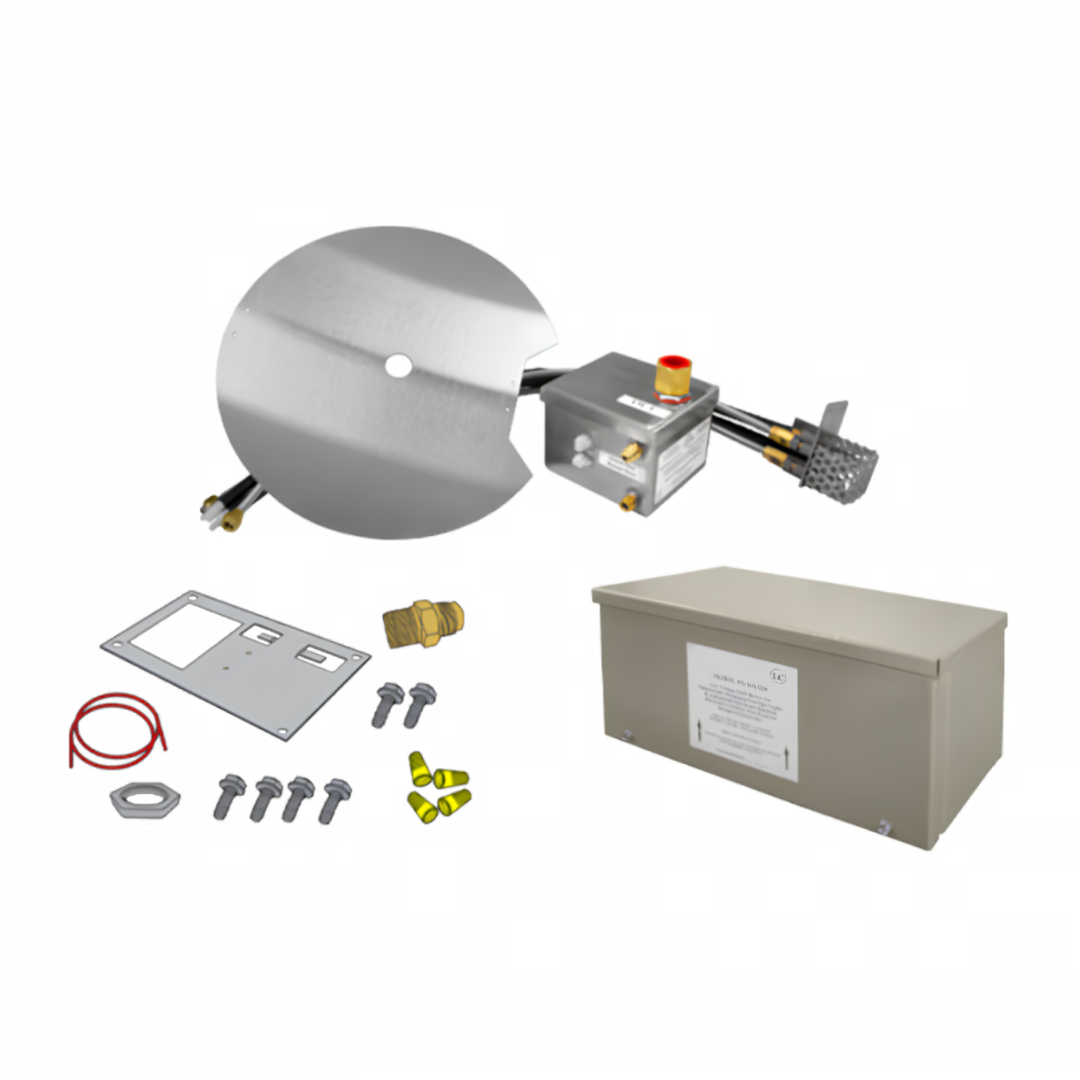

Included

  • 30" Pilot Assembly
  • Mounting Plate for High Capacity Key Valve
  • On/Off Weatherproof Rocker Switch
  • Heat Shield
  • Mounting Hardware
  • 10' AWS Power Wire to Valve
  • T300-9898-34 gas flex connector and related adapters as specified in the catalog
  • Stainless Steel Close Nipple
  • Steel Adapter
  • Power Supply and Orifice are not included
