Product Description

The AWS Single Fire Feature Ignition System is designed for use with a single fire feature. The system is available for both Natural Gas and Liquid Propane applications, with each model providing a 290K BTU capacity and a 30VDC valve system.

The system is weather resistant, and its components can be housed underneath the burner. It can only be installed in fire features located more than 10 ft. away from a pool or spa.

Key Features

  • Single Fire Feature: Designed for use with a single fire feature.
  • Natural Gas and Liquid Propane Options: The Natural Gas model uses a 30VDC valve system for Natural Gas, while the Liquid Propane model uses a 30VDC valve system for Liquid Propane.
  • 290K BTU Capacity: Provides a 290K BTU capacity.
  • Weather Resistant: Designed as a weather-resistant ignition system.
  • Under-Burner Installation: All components can be housed underneath the burner.
  • Pool and Spa Clearance: Can only be installed in fire features that are greater than 10 ft. away from a pool or spa.
  • Replacement Application: Replaces part # FG-AWS30VDC-RCK.

Specifications

  • BTU Capacity: 290K BTU
  • Valve System: 30VDC
  • Natural Gas Model: 30VDC Valve System for Natural Gas
  • Liquid Propane Model: 30VDC Valve System for Liquid Propane
  • Pilot Assembly: 30"
  • Installation Clearance: Greater than 10 ft. away from a pool or spa
  • Power Supply: GOE-30VDC
  • System Type: Single Fire Feature Ignition System

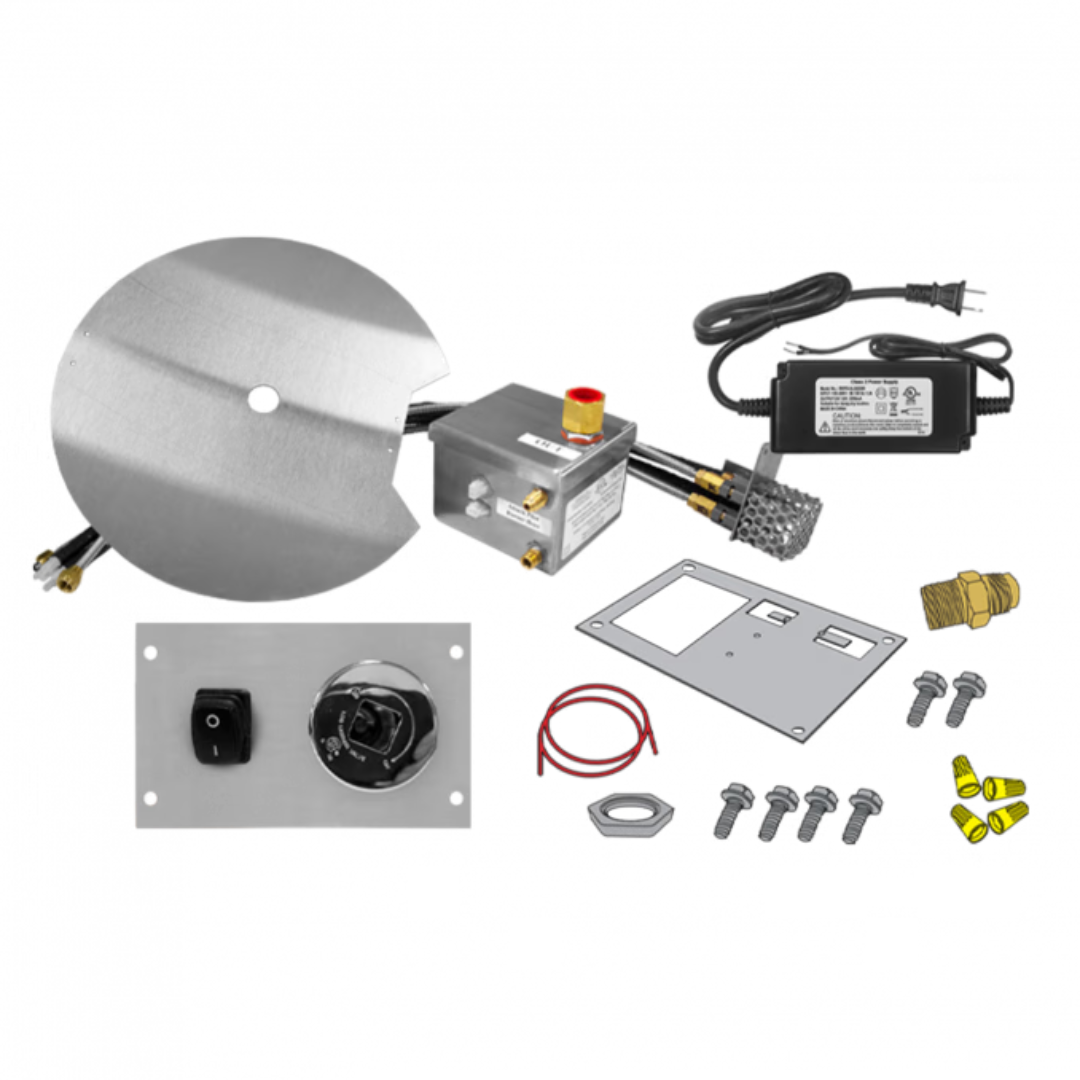

Included

  • 30VDC Valve System
  • 30" Pilot Assembly
  • Heat Shield
  • Wire Leads
  • Hardware Bag
  • GOE-30VDC Power Supply
  • On/Off Weatherproof Rocker Switch
  • Stainless Steel Mounting Plate
