Product Description

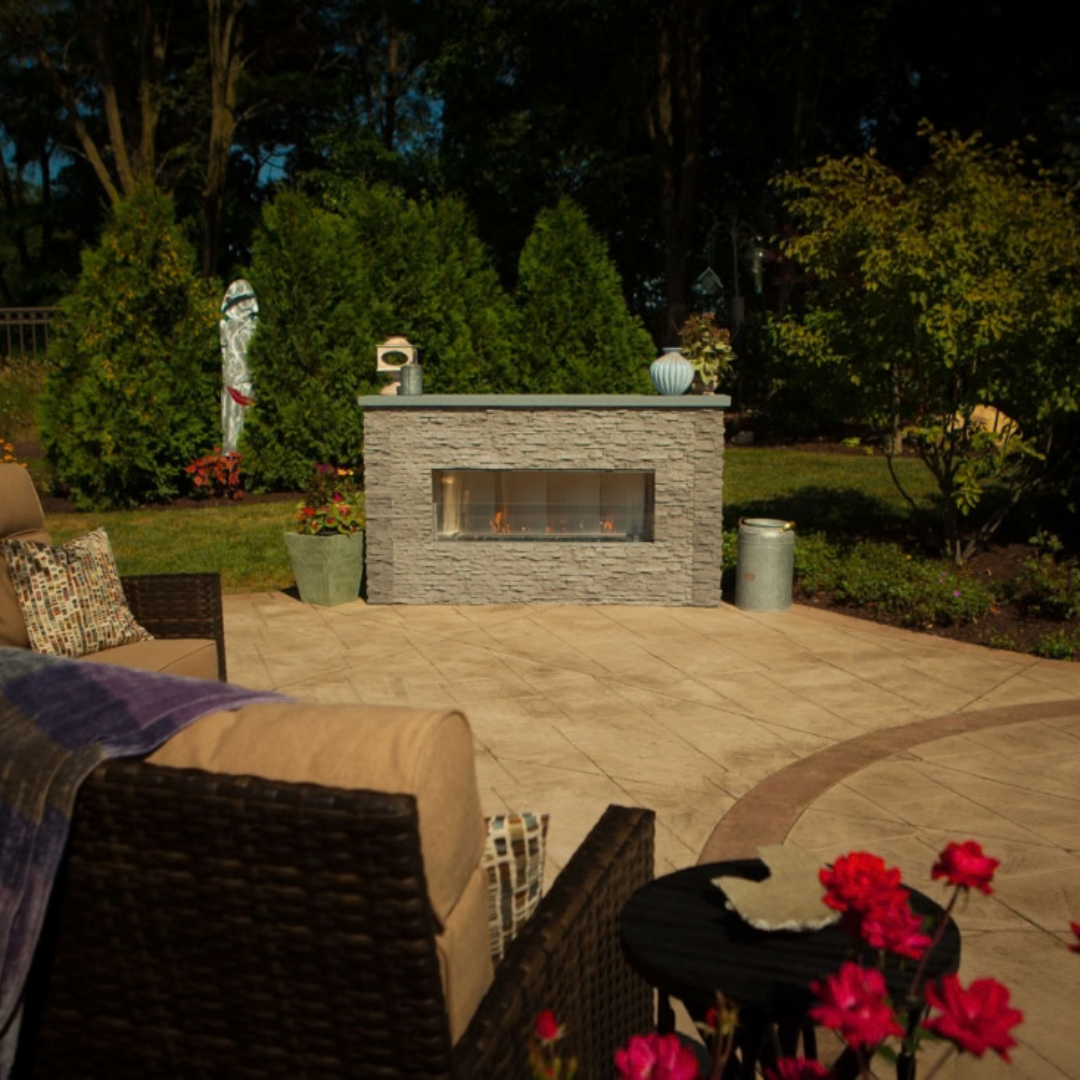

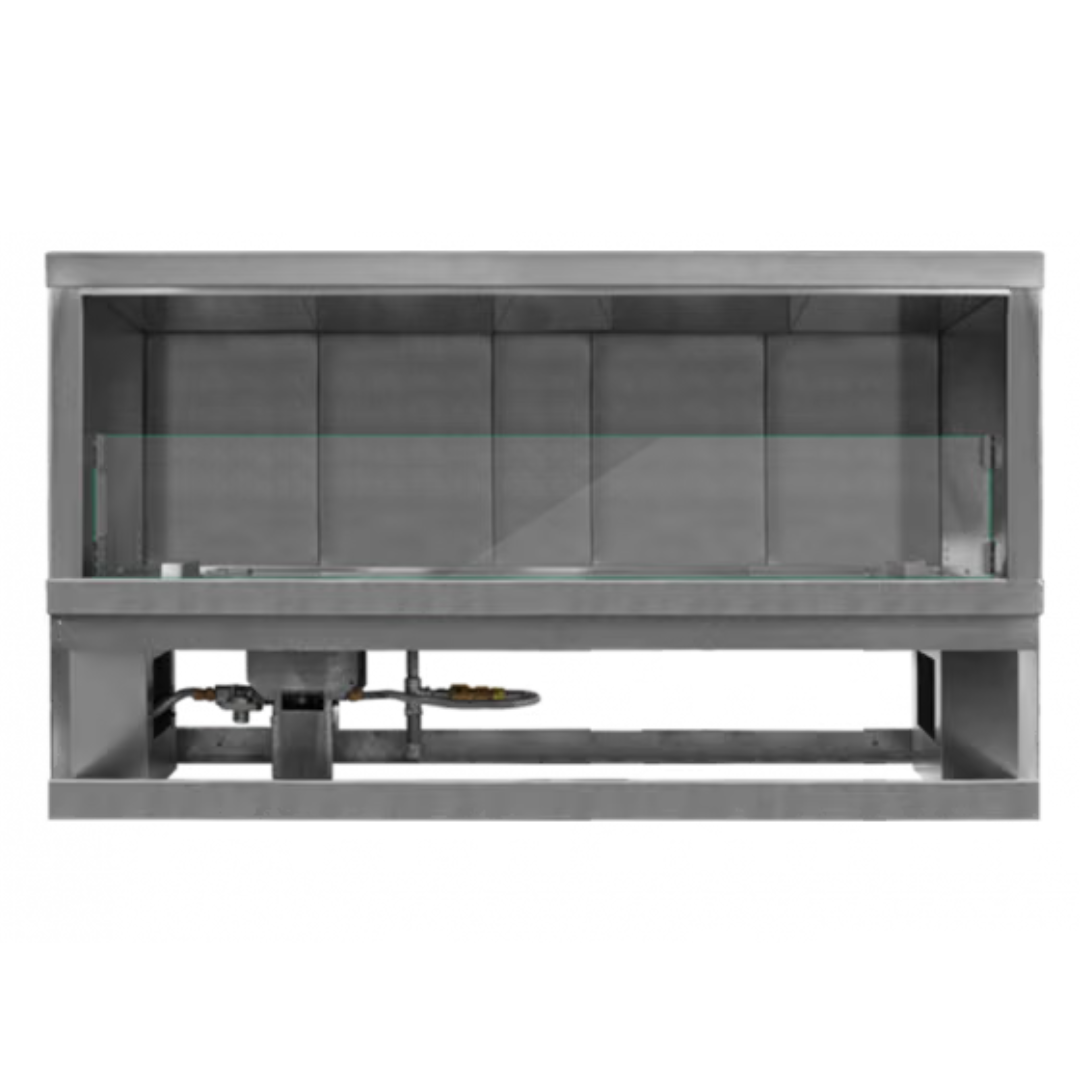

The Kalea Bay Outdoor Fireplace is a contemporary outdoor linear gas fireplace designed for outdoor applications. It is available in LED and non-LED versions and is designed for installation without a chimney or venting.

The fireplace provides HI/LO operation and is available for either Natural Gas or Propane Gas. It is designed for outdoor use only and requires proper cross ventilation within the enclosure

Key Features

  • Outdoor Design: Designed exclusively for outdoor use in a well-ventilated space.
  • Linear Fireplace: Contemporary linear gas fireplace with a 60 in. inside opening.
  • HI/LO Operation: Provides HI/LO flame operation after installation.

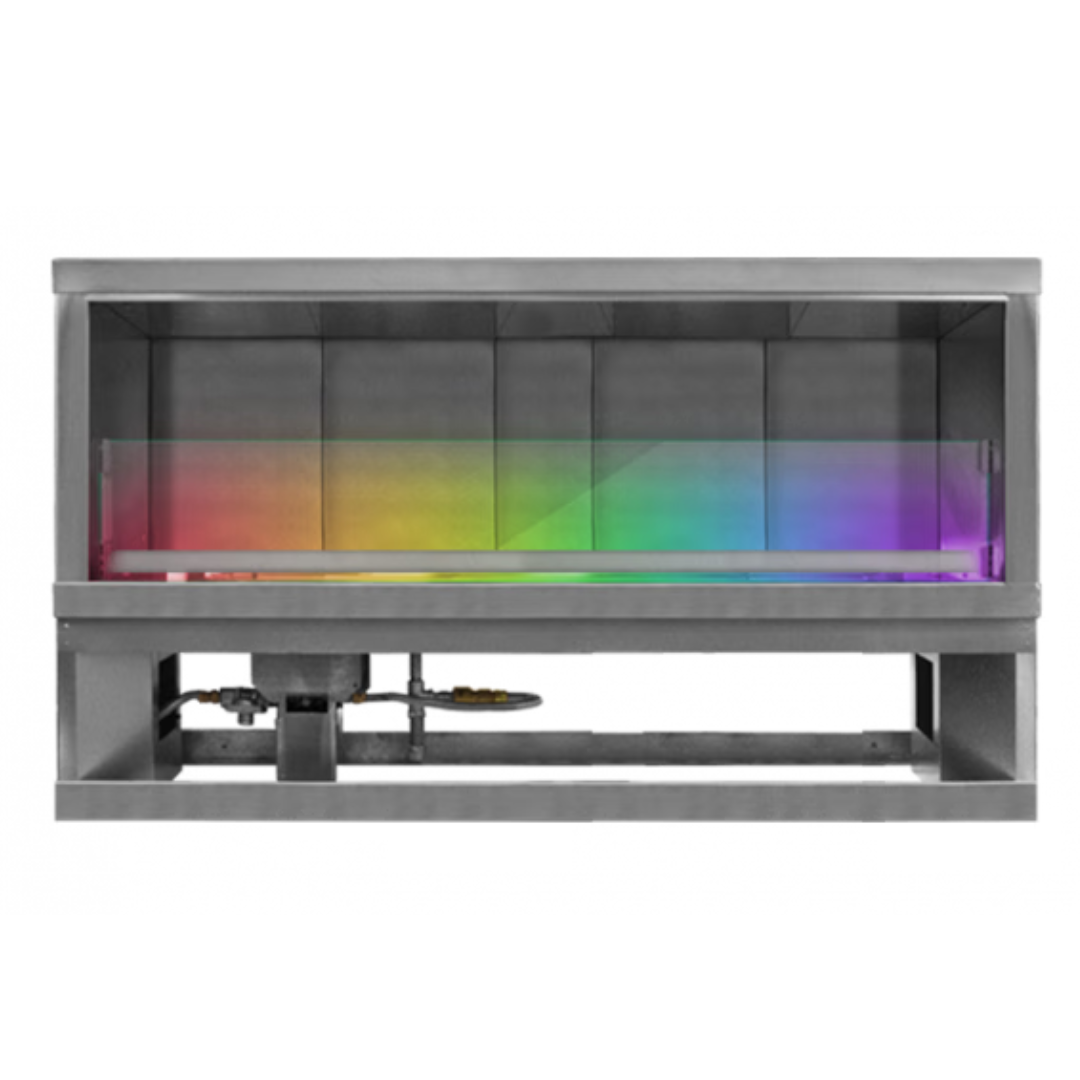

  • LED Options: LED versions include integrated LED lighting with a dedicated LED power supply and RGB control system.
  • Gas Options: Available in Natural Gas and Propane Gas versions.
  • Radiant Heating: Designed as a radiant fireplace and does not have a fan option.
  • Cross Ventilation: Requires a minimum of 18 square inches of cross ventilation per side to help keep the enclosure dry.
  • Framing: Requires metal studs for framing. Wood studs are not permitted.
  • Outdoor Installation: Requires installation on a flat, level, stable, non-combustible surface or according to the specified installation requirements.

Specifications

  • Overall Length: 64 in.
  • Inside Opening: 60 in.
  • Overall Height: 33½ in.
  • Opening Height: 16 in.
  • Overall Depth: 16¼ in.
  • Leg Height: 11½ in.
  • Valve Box Depth: 10¼ in.
  • Clearance to Combustible Side Wall: 6 in.
  • Clearance to Combustible Ceiling: 46½ in.
  • Framing Width: 64½ in.
  • Framing Height: 33¾ in.
  • Framing Depth: 15¾ in.
  • Natural Gas BTU High: 50,000 BTU
  • Natural Gas BTU Low: 36,000 BTU
  • Propane Gas BTU High: 50,000 BTU
  • Propane Gas BTU Low: 36,000 BTU
  • Gas Type: Natural Gas or Propane Gas
  • Ignition: Electronic ignition
  • Cross Ventilation: Minimum 18 square inches per side
  • Certification: ANSI Z21.97-2017 / CSA 2.41
