Product Description

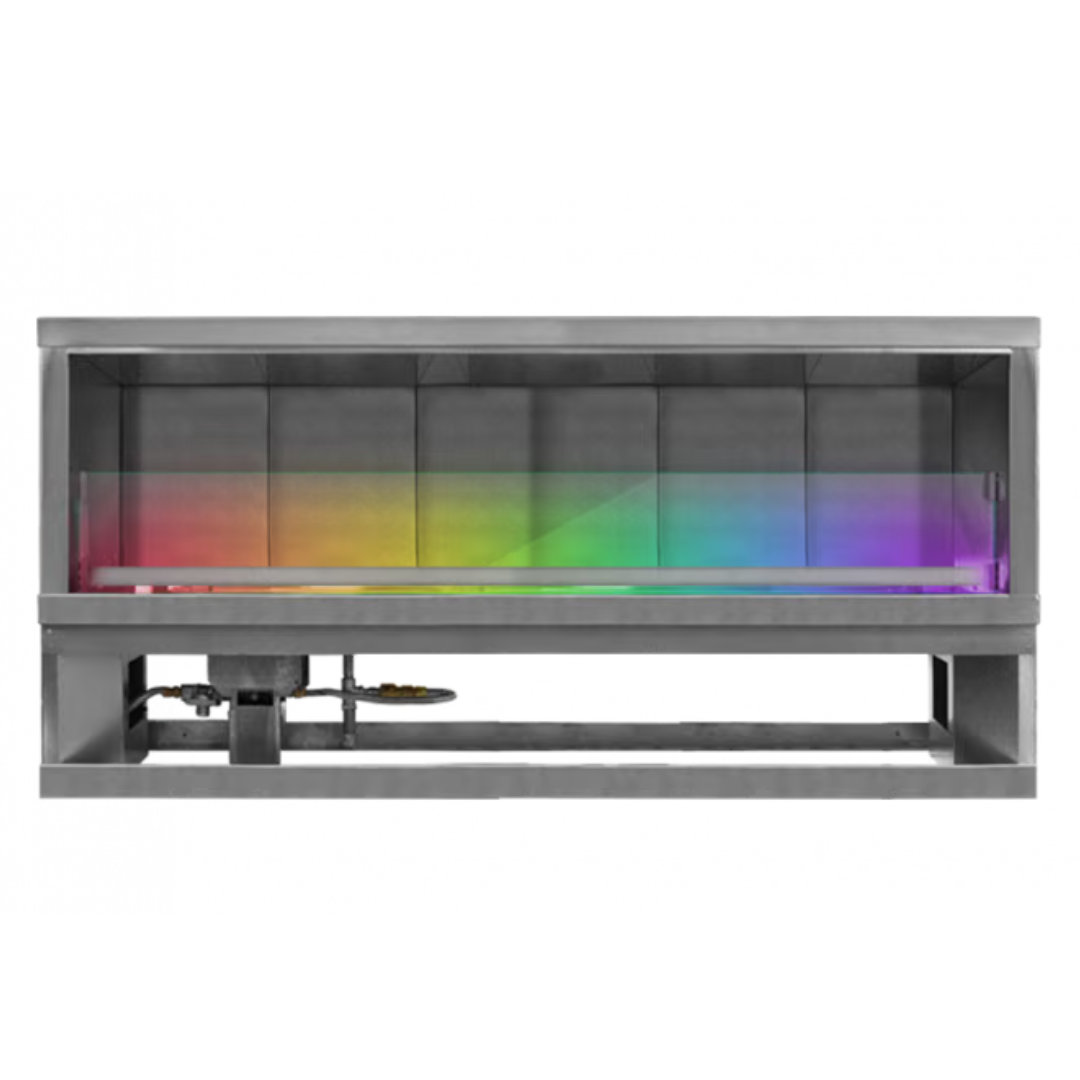

The Kalea Bay Outdoor Fireplace is a contemporary outdoor linear gas fireplace designed for outdoor applications. Its clean, modern design is intended for efficient framing and finishing without requiring a chimney or venting.

This 72 in. model features LED lighting, HI/LO operation, and electronic ignition. It is available in Natural Gas and Propane Gas versions, with the LED lighting able to operate independently of the fireplace

Key Features

  • Outdoor Design: Designed for outdoor use only and must be installed in a well-ventilated outdoor space.
  • Linear Fireplace: Features a 72 in. inside opening with a contemporary open-front design.
  • HI/LO Operation: Provides HI/LO flame operation once installation is complete.
  • Electronic Ignition: Uses electronic ignition powered by a 7.5VDC adapter.
  • LED Lighting: Integrated LED lighting operates from a 12V adapter and can operate with or without the fireplace operating.
  • Cross Ventilation: Requires a minimum of 18 square inches of cross ventilation per side to help keep the enclosure dry.
  • Framing: Requires metal studs for framing. Wood studs are not permitted.
  • Installation Surface: Must be installed on a flat, level, stable, non-combustible surface, subject to the installation requirements.

Specifications

  • Overall Length: 76 in.
  • Inside Opening: 72 in.
  • Overall Height: 33½ in.
  • Opening Height: 16 in.
  • Overall Depth: 16¼ in.
  • Leg Height: 11½ in.
  • Valve Box Depth: 10¼ in.
  • Clearance to Combustible Side Wall: 6 in.
  • Clearance to Combustible Ceiling: 46½ in.
  • Framing Width: 76½ in.
  • Framing Height: 33¾ in.
  • Framing Depth: 15¾ in.
  • Natural Gas BTU High: 65,000 BTU
  • Natural Gas BTU Low: 42,000 BTU
  • Gas Type: Natural Gas or Propane Gas
  • Ignition: Electronic Ignition
  • LED Power: 12V adapter
  • Gas Valve System Power: 7.5VDC adapter
  • Cross Ventilation: Minimum 18 square inches per side
  • Certification: ANSI Z21.97-2017 / CSA 2.41
