Product Description

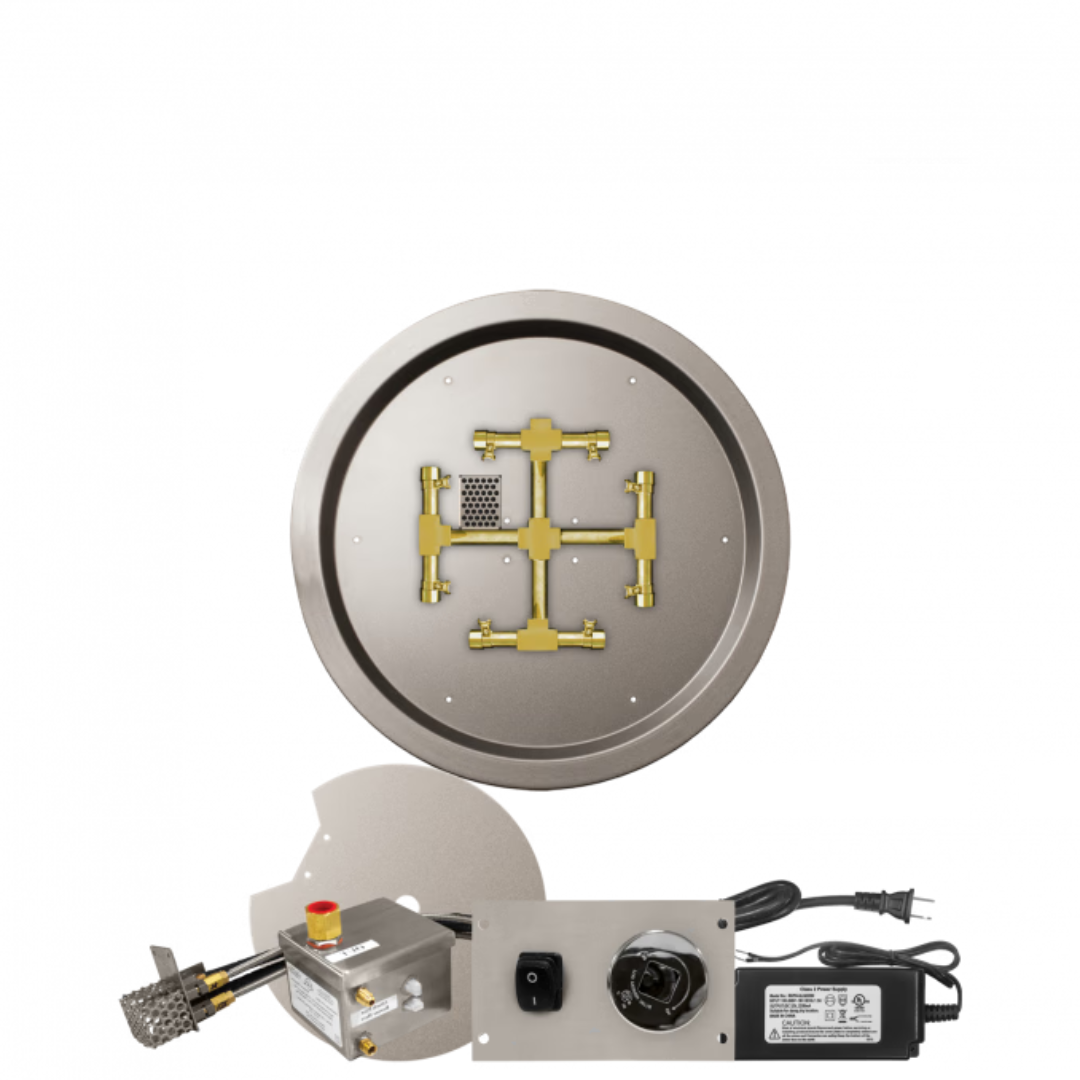

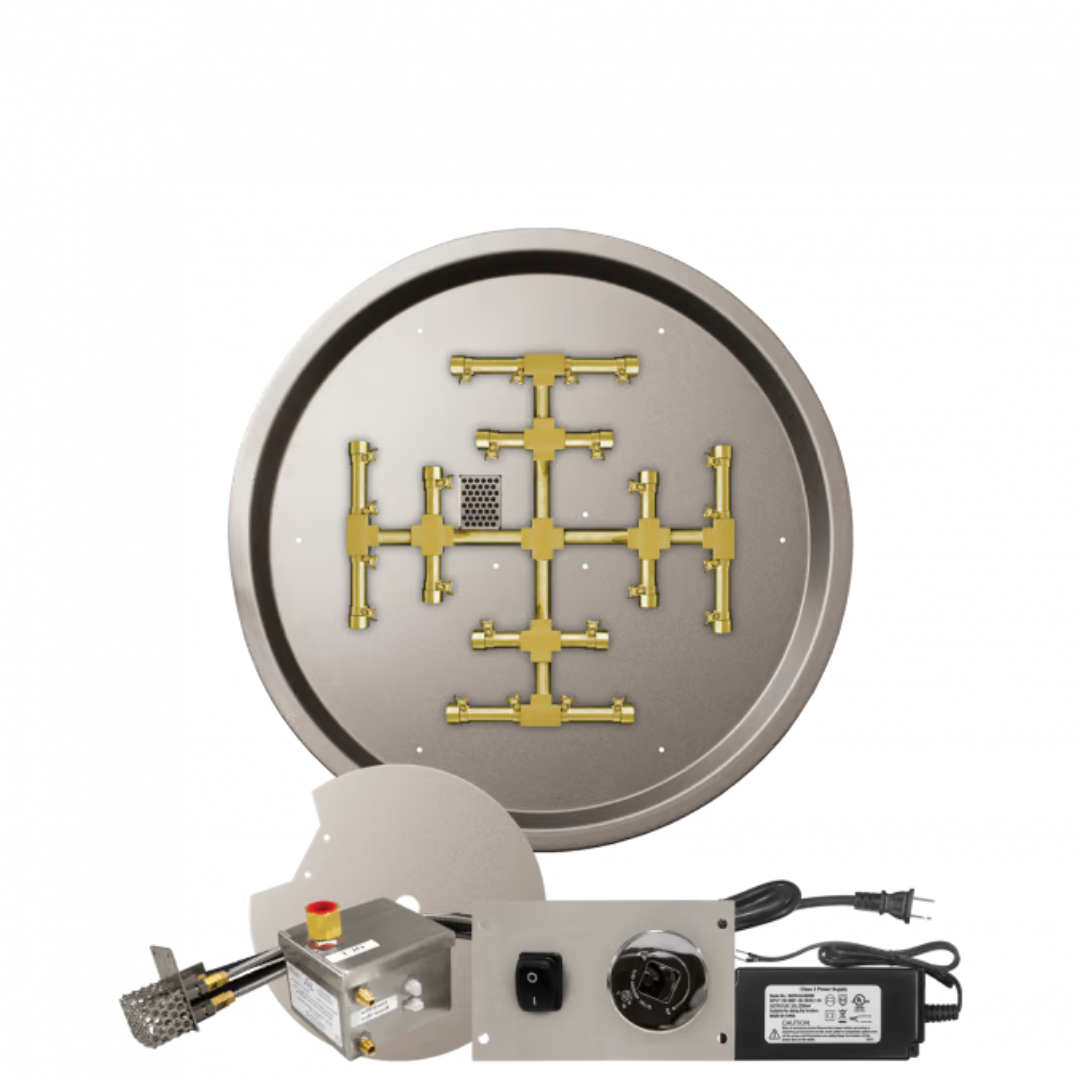

The Pro Series Burner System is a round, drop-in fire pit system featuring a brass Snowflake burner and an All Weather Ignition System (AWS). It is designed for outdoor use and is manufactured for either Natural Gas or Propane.

Available sizes in this product listing include 19-inch, 25-inch, and 29-inch round drop-in pans with 11-inch or 18-inch Snowflake burners. Each fuel type has its own factory-specified burner configuration

Key Features

  • High-Quality Brass Construction: Crafted using high-quality brass for the Pro Series fire pit burner system.

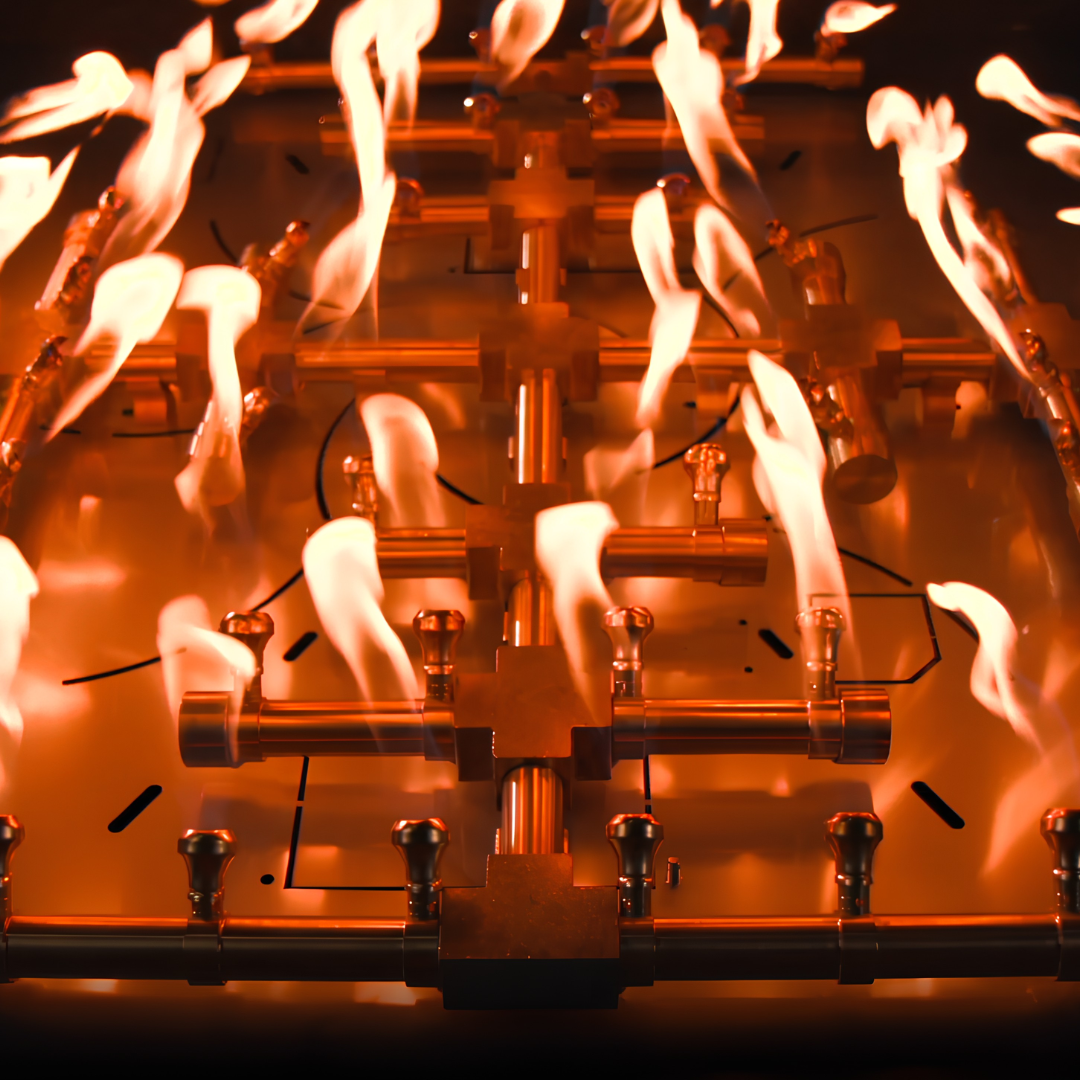

  • Snowflake Burner Design: Uses a Pro Series brass Snowflake burner with individual injectors.
  • Round Drop-In Configuration: Designed with a round burner pan for drop-in fire pit installations.
  • All Weather Ignition System: Features a 30VDC commercial-grade outdoor electronic ignition system.
  • Factory-Specified Fuel: Available as Natural Gas or Propane models and not convertible from one gas type to the other.
  • Multiple Burner Sizes: The supplied models use 11-inch and 18-inch Snowflake burners.

Specifications

  • Material: High-quality brass
  • Burner Type: Pro Series Snowflake burner
  • System Configuration: Round, drop-in
  • Ignition System: All Weather Ignition System (AWS)
  • Fuel Types: Natural Gas and Propane
  • 19-Inch Pan: 19-inch diameter I.D., 11-inch square burner, 50,000 BTU Natural Gas or 42,000 BTU Propane,
  • 25-Inch Pan: 25-inch diameter I.D., 18-inch square burner, 145,000 BTU Natural Gas or 124,000 BTU Propane,
  • 29-Inch Pan: 29-inch diameter I.D., 18-inch square burner, 145,000 BTU Natural Gas or 124,000 BTU Propane,
  • Maximum Opening Size: 20 inches for the 19-inch pan, 26 inches for the 25-inch pan, and 30 inches for the 29-inch pan
  • Minimum Ground Clearance: 8 inches
  • Minimum Side Wall Clearance: 36 inches
  • Combustible Ceiling Clearance: 96 inches for the 19-inch pan and 120 inches for the 25-inch and 29-inch pans
  • Combustible Floor Clearance: 18 inches
  • Minimum Cross Ventilation: 18 square inches per side for a non-combustible enclosure
