Product Description

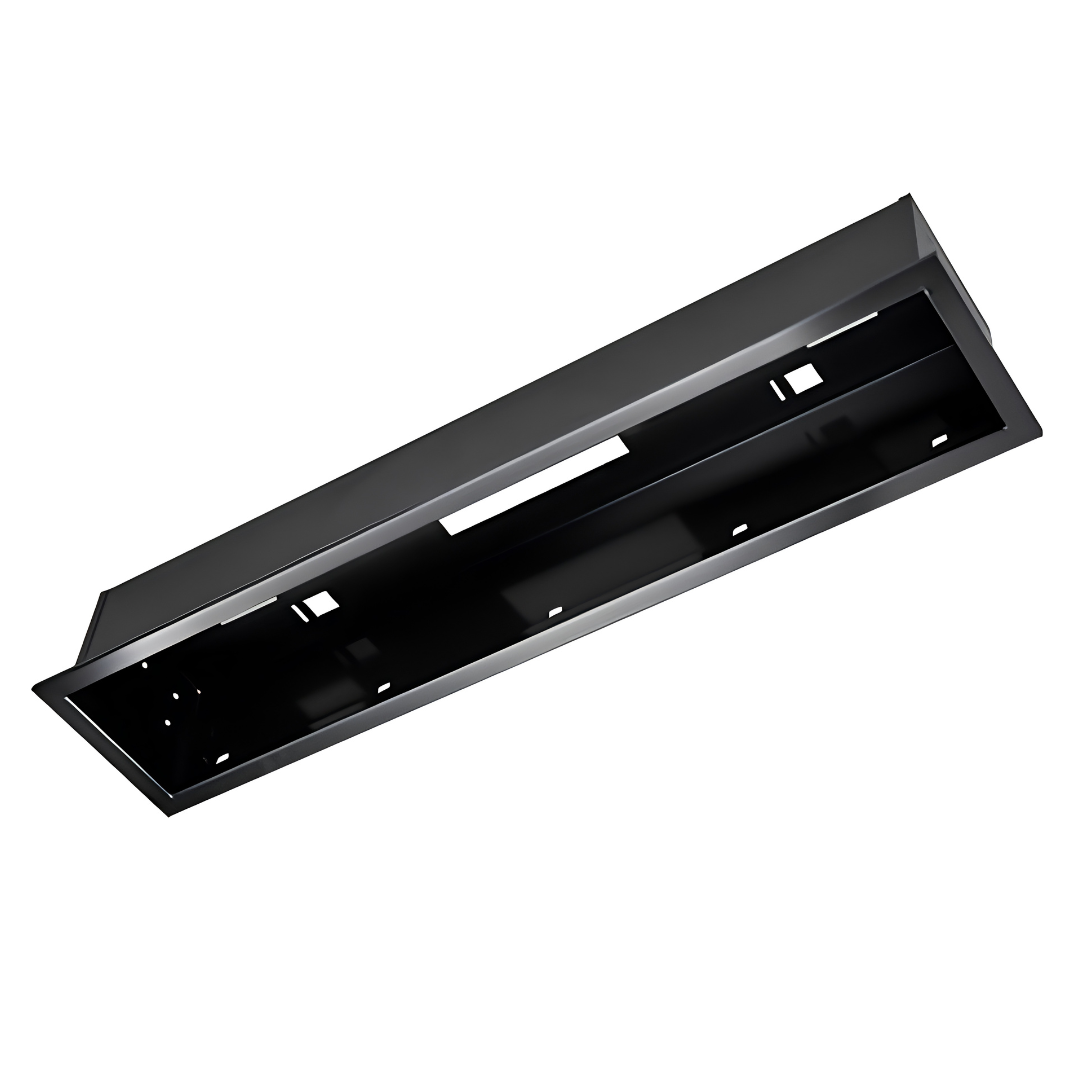

Flush Mount Enclosure is designed to provide a neat, recessed ceiling installation for HEATSTRIP Enhance heaters. It is supplied as a one-piece enclosure and can be used with plaster or wood-lined ceiling materials.

Two enclosure sizes are available to suit the 2400W and 3200W Enhance heater models, with model-specific cutout dimensions, overall dimensions, and weights.

Key Features

  • Flush Ceiling Installation: Designed for neatly installing an Enhance heater into a ceiling.
  • One-Piece Construction: Supplied as a one-piece unit for mounting the heater.
  • Ceiling Material Compatibility: Suitable for plaster or wood-lined ceiling materials.
  • Two Size Options: Available for both Enhance heater sizes, with dimensions matched to the applicable heater model.
  • Durable Construction: The fascia is manufactured from 316 stainless steel and powder coated black, while the rear casing is black zinc coated steel.
  • Installation Clearances: Installation requires minimum clearances, with cables, backing materials, insulation, and other materials kept clear of the back and sides of the enclosure.
  • Installation Requirements: The mounting area must be properly prepared with the correct-size hole and secure mounting points. Screws for fixing the enclosure into battens are not included.

Specifications

  • Suitable Heater: THG2400BA
  • Part No.: THGAC-001
  • Hole Cutout Dimensions: 1035(L) x 253(W) mm
  • Overall Dimensions: 1091(L) x 308(W) x 181(D) mm
  • Weight: 5 kg
  • Suitable Heater: THG3200BA
  • Part No.: THGAC-002
  • Hole Cutout Dimensions: 1135(L) x 253(W) mm
  • Overall Dimensions: 1191(L) x 308(W) x 181(D) mm
  • Weight: 7 kg
  • Fascia Material: 316 stainless steel, powder coated black
  • Rear Casing Material: Black zinc coated steel

Size Guide

  • THGAC-001: Model THG2400BA; overall dimension A: 1091 mm; B: 1035 mm; C: 1035 mm
  • THGAC-002: Model THG3200BA; overall dimension A: 1191 mm; B: 1135 mm; C: 1135 mm
  • Ideal Mounting Height: 2.4m - 2.7m
  • Maximum Ceiling Height: 3m in an outdoor environment

Compatibility

  • Compatible With: THG2400BA and THG3200BA Enhance heaters, according to the applicable enclosure size.

Included

  • Flush Mount Enclosure, supplied as a one-piece unit.
  • Mounting screws are not included
